          Ultrasonic Transducers & Components  Specifications

 (Download All)

PDF Files

Model
Number

Description

Center Frequency
(Khz)

Sensitivity
Or SPL
(min.)

Bandwidth
(-6dB)
(Khz)

Capacitance
At 1Khz
(pF)

Max. Continual
Driving
Voltage


Open Face Transducers

250ST160

Transmitter

25.01.0

112dB at 25.0Khz

2.0

240020%

20Vrms

250SR160

Receiver

-65dB at 25.0Khz

250ST180

Transmitter

112dB at 25.0Khz

1.5

250SR180

Receiver

-65dB at 25.0Khz

1.8

250ST240

Transmitter

115dB at 25.0Khz

1.5

250SR240

Receiver

-63dB at 25.0Khz

1.8

328ST160

Transmitter

32.81.0

115dB at 32.8Khz

2.5

328SR160

Receiver

-67dB at 32.8Khz

328ST180

Transmitter

117dB at 32.8Khz

2.0

328SR180

Receiver

-64dB at 32.8Khz

400ST100

Transmitter

40.01.0

110dB at 40.0Khz

2.5

190020%

20Vpp

400SR100

Receiver

-70dB at 40.0Khz

3.0

400ST120

Transmitter

115dB at 40.0Khz

2.0

240020%

20Vrms

400SR120

Receiver

-67dB at 40.0Khz

400ST160

Transmitter

119dB at 40.0Khz

400SR160

Receiver

-65dB at 40.0Khz

2.5

  Closed Face Transducer

400ET250

Transmitter

25.01.0

113dB at 25.0Khz

1.0

240020%

15Vrms

400ET250

Receiver

-63dB at 25.0Khz

1.0

328ET250

Transmitter

32.81.0

113dB at 32.8Khz

1.0

240020%

20Vrms

328ER250

Receiver

-67dB at 32.8Khz

1.0

400ET080

Transmitter

40.01.0

100dB at 40.0Khz

1.5

170020%

15Vrms

400ER080

Receiver

-80dB at 40.0Khz

2.0

400ET180

Transmitter

115dB at 40.0Khz

1.5

240020%

15Vrms

400ER180

Receiver

-70dB at 40Khz

1.5

400ET250

Transmitter

115dB at 40.0Khz

1.0

20Vrms

400ER250

Receiver

-70dB at 40.0Khz

1.0

Pulse Transit transducer

400PT120

Transceiver

40.01.0

115dB/-68dB at f0

2.0

240020%

100Vp-p

Tone Bursts

 (0.4ms)

 2% Duty Cycle

**(  Asymmetric Beam Patterns)

400PT160

Transceiver

117dB/-65dB at f0

2.0

400EP18A

Transceiver

108dB/-75dB at f0

1.5

180020%

400EP14D

Transceiver

103dB/-78dB at f0

1.5

125020%

400EP18D

Transceiver

100dB/-80dB at f0

1.2

175020%

400EP250

Transceiver

113dB/-72dB at f0

4.0

240020%

480EP900

Transceiver

48.01.0

110dB/-80dB at 48Khz

15.0

Wide Bandwidth Transducer

400WB160

Transceiver

40.01.0

105dB/-72dB at 40.0Khz

15.0

240020%

20Vrms

Mirror Bender Type

500MB120

Dual

43.04.0

-55dB/100cm

2.0

240020%

20Vrms

Silicone Rubber Matching Layer

032SR750

Transceiver

32.03.0

-58dB/25cm

2.0

140020%

 -

 -

043SR750

Transceiver

43.04.0

.*20dB/-70dB at 125Khz

10.0

5700 20%

1500 Vp-p

080SR365

Transceiver

80.08.0

-57dB/50cm
5.0

 -

-

  -

125SR250

Transceiver

12510

-58dB/25cm

10.0

125020%

700 Vp-p

235SR130

Transceiver

235.010

-60dB/25cm

10.0

112020%

80 Vp-p,

320SR093

Transceiver

32010

-65dB-

10.0

27020%

50 Vp-p

Glass Filled Epoxy Matching Layer

200GE180

Transceiver

20010

20db/-75db

1.5

58020%

50 Vp-p

Assembled Units With Harness

SQS-04

Transducer Assembly (40AST/R10 covered by rubber boot with a shield cable)



SQS-05

Transducer Assembly (40AST/R12 covered by rubber boot with a shield cable)

SQS-06

Transducer Assembly (40AST/R16 covered by rubber boot with a shield cable)



Electrostatic Transducers

500ES290

Transceiver

50.01.0
Sensitivity -43 dB(-63 dB)

-

600-700pF 400Vp-p

SPL  116db

500ES430

Transceiver
50.01.0

Sensitivity -42dB(-62 dB)

-

400-500pF 400Vp-p

SPL 119db

Electronic Components

SRM400

Sonar Ranging Module

PW0268

Sonar Custom ASIC IC

K4000001/2/3/4

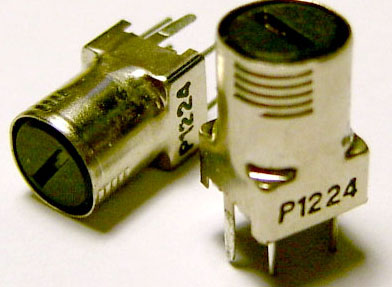

Matching Transformers

Special Applications

US040015

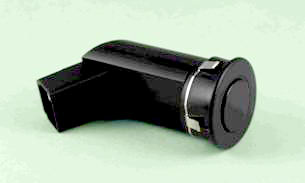

Automotive Reverse Parking Aid Sensor

FS Series

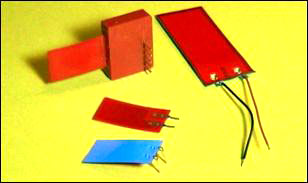

Piezo Film (PVDF) FS-2513P,W,

30402S,45402H

45282H,60282H

High Power Transducers

M165D25

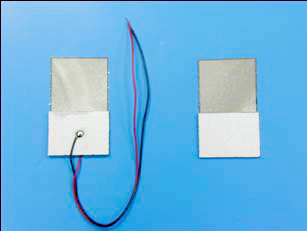

Atomizing Ceramics Transducer

M2313500

 Atomizing Micro Nozzle Ultrasonic Transducer

GBD Series

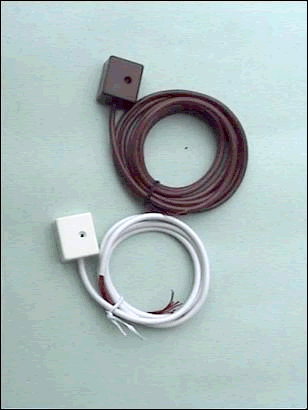

Glass Break Detector Sensor GB-02W,B

200LM450

Under Water Transducer
